Hi-Shear Inst. & Removal l Hand Tool l HLH500

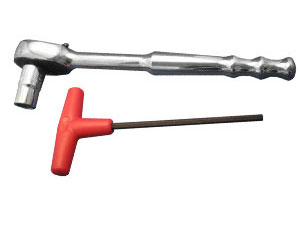

HLH500





Hand Installation Tool
For Large Size Collars

Ordering Information

• Determine collar driving hex and pin recess hex dimensions of the fasteners to be installed.
• See table for “M” socket hex and “G” wrench tip hex combination to match collar driving hex and pin recess hex dimensions.
• Determine Complete Tool Assembly Part Number
Part Number Example
HLH500-625-062
“M” Socket Hex
(Matches Collar Driving Hex)
“G” Wrench Tip Hex
(Matches Pin Recess hex)
Complete Tool Assy. Part Number
Dimensions
Socket Square Drive
Ratchet Wrench Assy. Part No.
Socket Assembly Part No.
Wrench Key Assembly part No.
A
B
C
D
E
3/8”
5/64”
HLH500-375-078
7.0
1.437
1.375
0.687
0.500
3/8”
HLH101-375
HLH106-375
HLH105-078
1/2”
3/32”
HLH500-500-094
1.500
HLH106-500
HLH105-094
1/2”
1/8”
HLH500-500-125
HLH106-500
HLH105-125
9/16”
1/8”
HLH500-500-125
10.0
2.187
1.750
0.875
0.687
1/2”
HLH101-500
HLH106-562
HLH105-125
6/16”
5/32”
HLH500-562-125
HLH106-562
HLH105-156
6/16”
3/16”
HLH500-562-156
HLH106-562
HLH105-187
5/8”
5/32”
HLH500-562-187
HLH106-625
HLH105-156
11/16”
5/32”
HLH500-625-156
HLH106-687
HLH105-156
11/16”
7/32”
HLH500-687-156
2.250
HLH106-687
HLH105-156
3/4”
3/16”
HLH500-750-187
HLH106-750
HLH105-218
7/8”
7/32”
HLH500-875-218
2.437
HLH106-875
HLH105-187
15/16”
1/4”
HLH500-937-250
20.0
3.125
2.625
1.250
1.125
3/4”
HLH101-500
HLH106-937
HLH105-250
1”
1/4”
HLH500-1000-250
HLH106-1000
HLH105-250
1-1/8”
5/16”
HLH500-1125-312
3.125
HLH106-1125
HLH105-312
